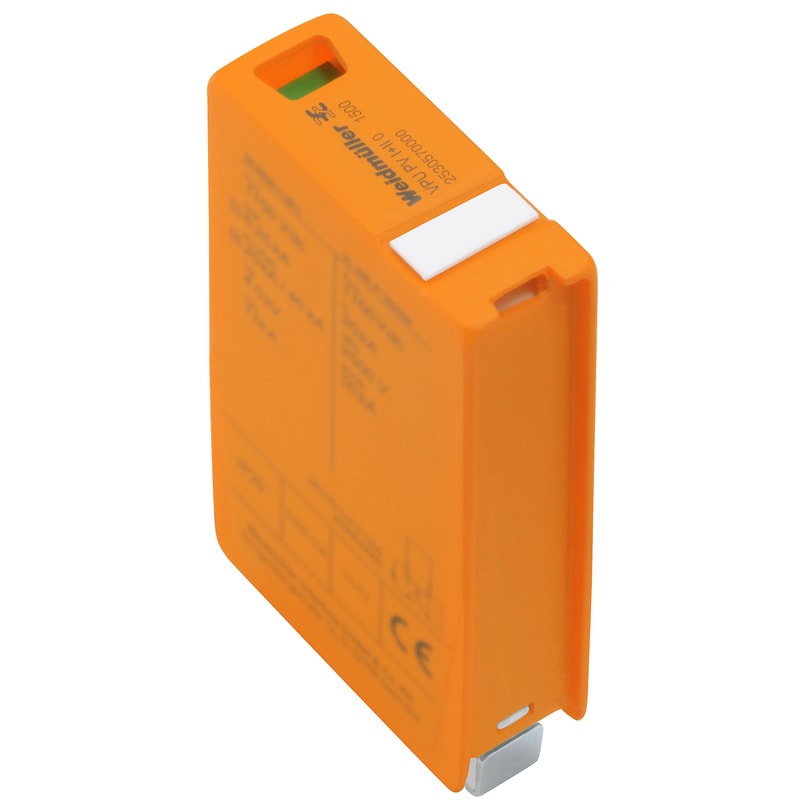

WEIDMUELLER Lightning current arrester Overspanningsbeveiliging voor energietechniek WEIDMUELLER Lightning current arrester 2530570000 4050118540482 6627640 2530570000 2530570000 VPU PV I+II 0 1500
The device is a Type I lightning and surge protection and is also tested as Type II device for photovoltaic (PV) application. It can be installed behind the PV inverter and protects against direct lightning strikes and surge voltages caused by switching operations or indirect lightning. The portfolio offers worldwide usage in high-elevation regions and long warranty. The application is installed on a mounting rail.
Aantal geleiders (excl. aarde) – 1
Nom. ontladingsstootstroom (8/20) – 20 kA
Spanningsbeveiligingsniveau – 5 kV
Montagewijze – Op basiselement
Nettype DC – ja
Aantal geleiders (excl. aarde) – 1
Nom. ontladingsstootstroom (8/20) – 20 kA
Spanningsbeveiligingsniveau – 5 kV
Montagewijze – Op basiselement
Nettype DC – ja
Nettype TN-S – nee
Nettype TN-C-S – nee
Nettype TN – nee
Nettype TN-C – nee
Nettype IT – nee
Max. ontladingspiekstroom (8/20) – 30 kA
Nettype overige – nee
Max. continuspanning DC – 1500 V
DIN-grootte – 1 TE (Rastermaat)
Met meldcontact – nee
Kortsluitvastheid (Isccr) – 11000 kA
Nominale spanning DC – 1500 V
Testklasse type 2 – ja
Max. PV-spanning – 1500 V
Veiligheidsniveau L-N – 5 kV
Veiligheidsniveau N-PE – 5 kV
Geïntegreerde kortsluitbeveiliging – nee
Geïntegreerde beveiliging – nee
Prijs per 1 stuks
